Author Topic: Am I the Pontius Pilate of this CX500?  (Read 13673 times)

Offline Brodie

  • DTT SUPPORTER
  • *
  • Posts: 2431
  • Gold Coast, Queensland
Re: Am I the Pontius Pilate of this CX500?
« Reply #160 on: Jan 03, 2019, 04:23:40 »
It is only meant to be 12% humidity at that heat though.
I'm not sure, but don't ask Brodie.

Way to many build and half done projects to list here.
Sr250, Gs750, Z50A, XV1100, A10, Z160A.

Offline Odontologist

  • Posts: 117
  • Umina Beach, Australia....Where does that part go?
Re: Am I the Pontius Pilate of this CX500?
« Reply #161 on: Jan 03, 2019, 04:51:40 »
Tomorrow normal work in aircon. Hope it cools a bit for weekend....but summer's  never as productive in the shed.
Run out of zip ties? Dental floss is an excellent alternative.

1982 Honda CX500 Roadster build

Offline Odontologist

  • Posts: 117
  • Umina Beach, Australia....Where does that part go?
Re: Am I the Pontius Pilate of this CX500?
« Reply #162 on: Jan 19, 2019, 06:39:50 »

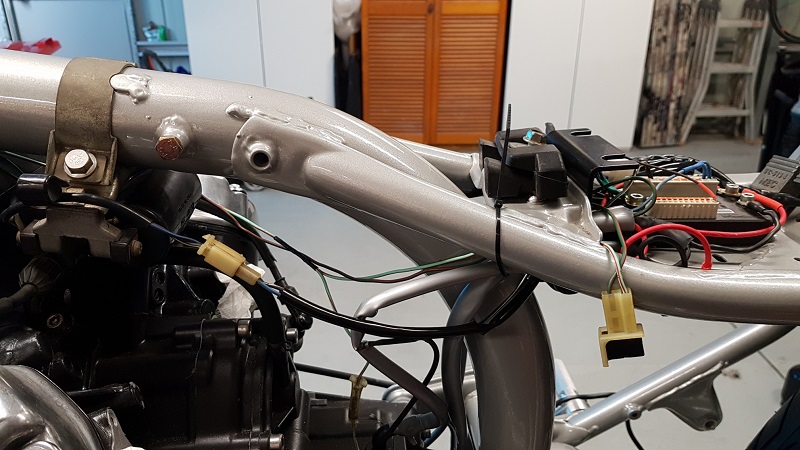

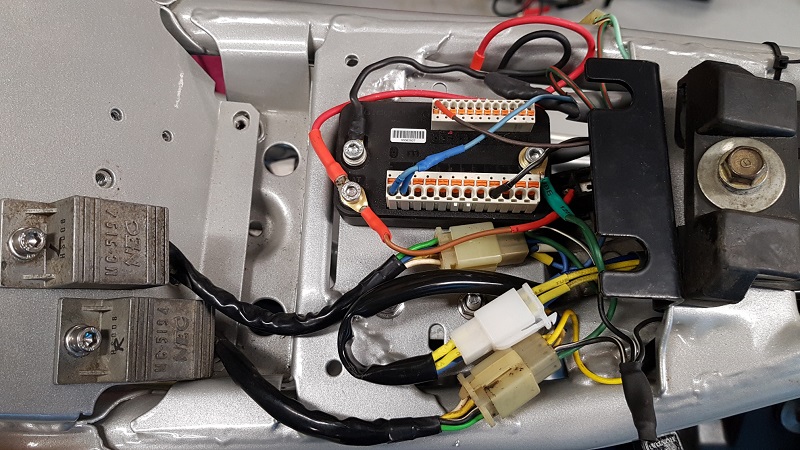

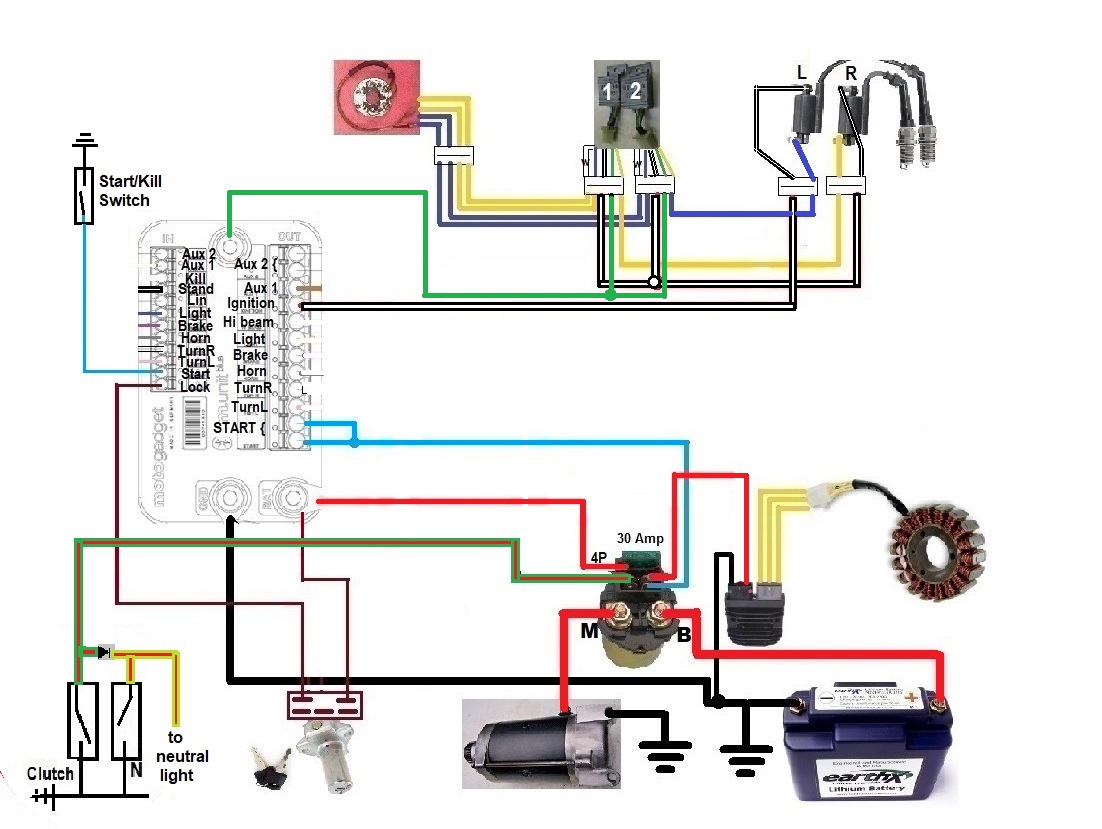

Finally a day below 30 degrees C. Got into the shed and finished the wiring for the ignition and charging systems.

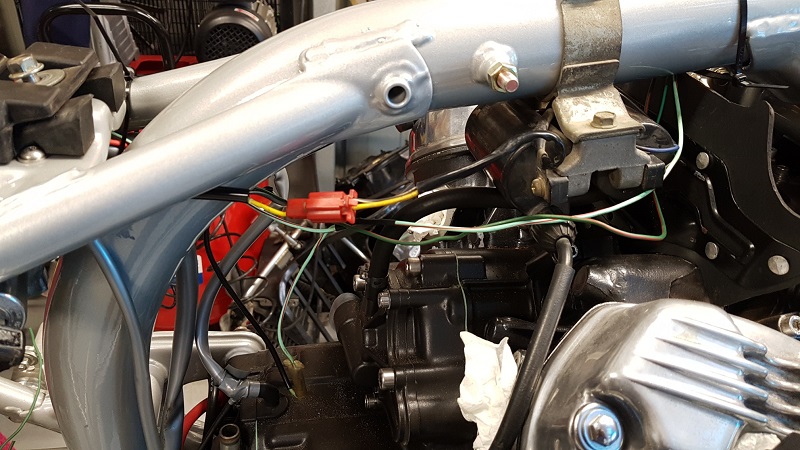

I kept the wiring and connectors from the pick ups to the spark units and to coils. So the ground is black elsewhere but green within this system, and the power from the M-unit ignition output I'm also keeping stock black and white.

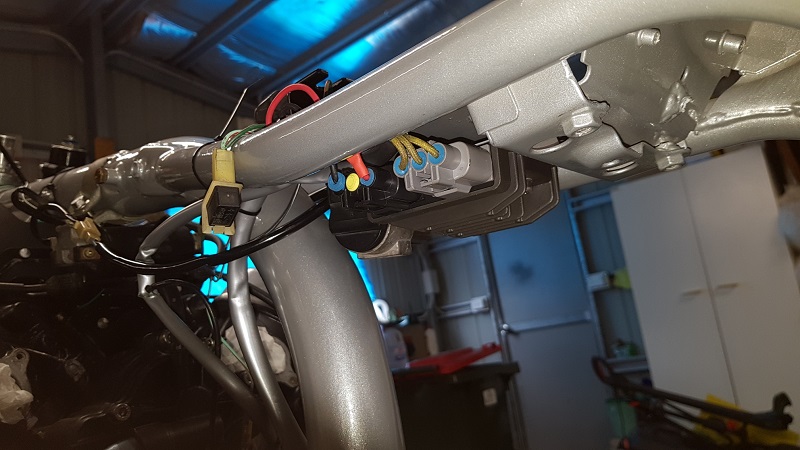

And initially I was going to locate Reg/rec on top of electrical tray, but under seat. After reading several posts with respect to this, I changed location to underside of tray, via a bracket I made, for plenty of ventilation.



I'm finding the routing to be the greatest challenge. I also discovered a gem. Sleeve wires before crimping and soldering connectors.
Run out of zip ties? Dental floss is an excellent alternative.

1982 Honda CX500 Roadster build

Offline Sonreir

  • Moderator
  • DTT SUPPORTER
  • *
  • Posts: 10974
  • Oregon
Re: Am I the Pontius Pilate of this CX500?
« Reply #163 on: Jan 19, 2019, 20:53:35 »
Looking good.
Sparck Moto - http://www.sparckmoto.com

Audaces fortuna iuvat.

1977 Honda CJ360 - Caf?SOS - Stage One?/a>, Caf?SOS - Stage Two?/a>
1976 Puch Maxi - APuchalypse Now
Suzi T500 Cobra Resto

Custom Gauge Graphics
Custom Wiring Harnesses

DTT Red, White, and/or Black 360 Club - Better than those Blue guys

Offline Odontologist

  • Posts: 117
  • Umina Beach, Australia....Where does that part go?
Re: Am I the Pontius Pilate of this CX500?
« Reply #164 on: Jan 20, 2019, 01:15:39 »
Thanks mate.
Sleeves and new connectors care of Vintage Connections. I think you're  one of the few stops to find decent quality electrical goodies. Highly recommended.
Run out of zip ties? Dental floss is an excellent alternative.

1982 Honda CX500 Roadster build

Offline Sonreir

  • Moderator
  • DTT SUPPORTER
  • *
  • Posts: 10974
  • Oregon
Re: Am I the Pontius Pilate of this CX500?
« Reply #165 on: Jan 20, 2019, 12:42:27 »
Cheers for that.

Having an increasingly difficult time competing with a lot of the junk available on Amazon and eBay, but for those who don't mind spending a few extra dollars to get high quality parts and supplies, I really do think we fit the bill.

I started working on motorcycle electrics (professionally) about five years ago and during that time I tried a few different suppliers for connectors and terminals and while many of the sources were cheaper, none matched the quality. From personal experience, I know that the electrical system is not one of those areas where you want to skimp. It's false economy.
Sparck Moto - http://www.sparckmoto.com

Audaces fortuna iuvat.

1977 Honda CJ360 - Caf?SOS - Stage One?/a>, Caf?SOS - Stage Two?/a>
1976 Puch Maxi - APuchalypse Now
Suzi T500 Cobra Resto

Custom Gauge Graphics
Custom Wiring Harnesses

DTT Red, White, and/or Black 360 Club - Better than those Blue guys

Offline Odontologist

  • Posts: 117
  • Umina Beach, Australia....Where does that part go?
Re: Am I the Pontius Pilate of this CX500?
« Reply #166 on: Jan 20, 2019, 16:36:08 »
Agreed.
Run out of zip ties? Dental floss is an excellent alternative.

1982 Honda CX500 Roadster build

바카라 가입머니

Offline Odontologist

  • Posts: 117
  • Umina Beach, Australia....Where does that part go?
Re: Am I the Pontius Pilate of this CX500?
« Reply #167 on: Jan 26, 2019, 02:59:48 »
Tail light and bracket - number plate mounting bolts with built in led - rear indicators.



Speedometer sensor on diy aluminium bracket mounted to fender mounts - magnet glued to stainless bolt mounted to front rotor.



Run out of zip ties? Dental floss is an excellent alternative.

1982 Honda CX500 Roadster build

Offline JAGspeed

  • DTT BOTM WINNER
  • *
  • Posts: 116
Re: Am I the Pontius Pilate of this CX500?
« Reply #168 on: Jan 28, 2019, 01:33:10 »
Nice work! Clean looking build. Can't beat that M-unt just started wiring one up on my build.
XS650 Tracker build Mod Style: /f40/forum/index.php?topic=48134.0
Cafe XV920R Mega-Build: /f40/forum/index.php?topic=55864.0
CB750 Resto-Mod build:/f40/forum/index.php?topic=58358.0

Offline Odontologist

  • Posts: 117
  • Umina Beach, Australia....Where does that part go?
바카라 가입머니Re: Am I the Pontius Pilate of this CX500?
« Reply #169 on: Jan 28, 2019, 02:00:07 »
Thanks. For a noob like me it's  like painting by numbers. Trickiest thing has been deciding if and where to put connectors...mainly for ease of dis-assembly.
BTW love you CB....what u up to now?
Run out of zip ties? Dental floss is an excellent alternative.

1982 Honda CX500 Roadster build
